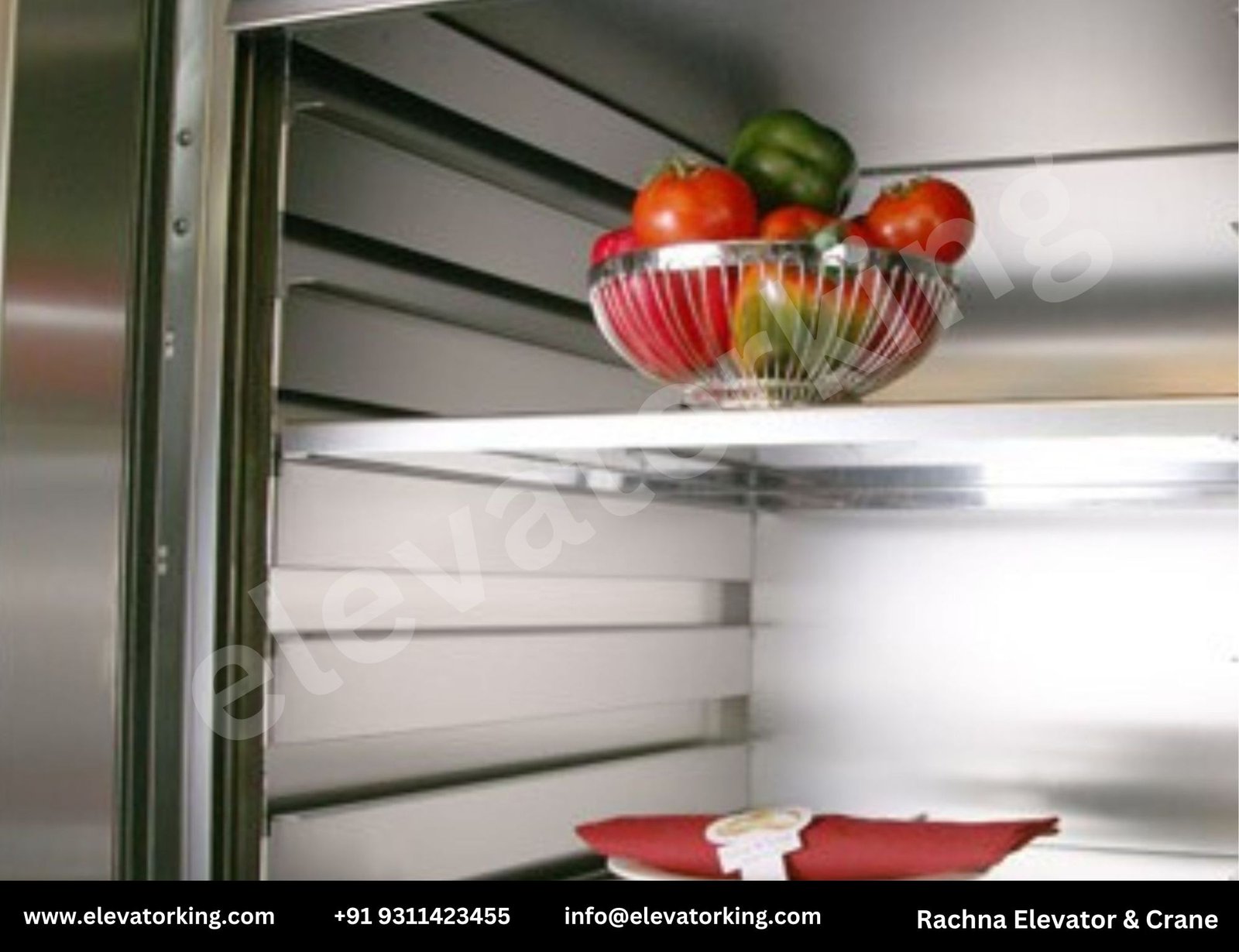

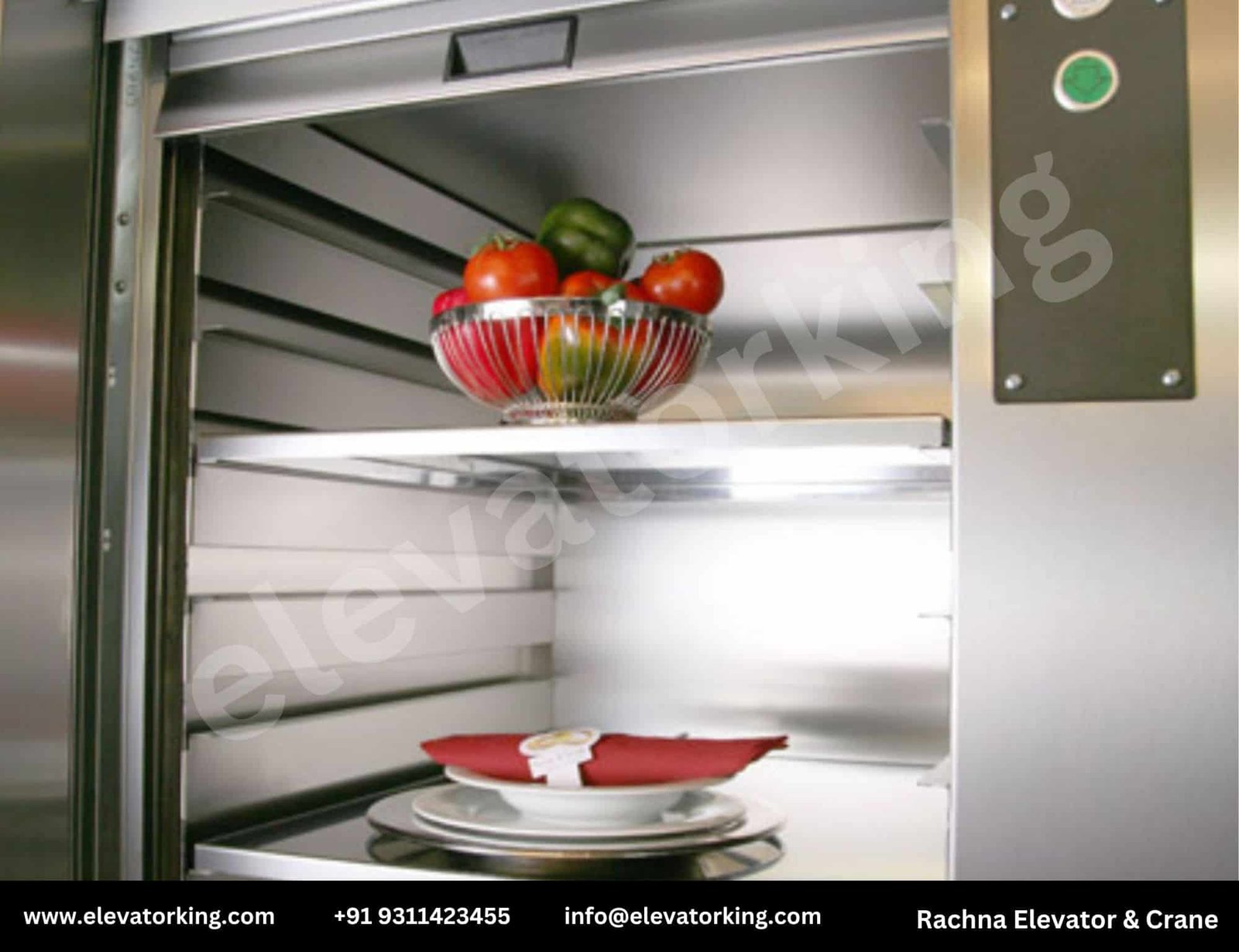

DUMB WAITER “A Dumbwaiter is a compact and efficient vertical lift that can be installed in your kitchen to transport food, dishes, and small appliances between different levels. With features like hydraulic lift, manual or motorized operation, and customizable size options, a Dumbwaiter can be an essential addition to your kitchen. Whether you are looking for a small Dumbwaiter for home use or a large commercial one for your restaurant, you can find a variety of options that will meet your needs. With its unique design and innovative features, a Dumbwaiter can revolutionize the way you store and transport items in your kitchen. So, why not invest in a hydraulic Dumbwaiter or a kitchen storage lift today and experience the ease and convenience of a vertical lift in your kitchen.
Key Features

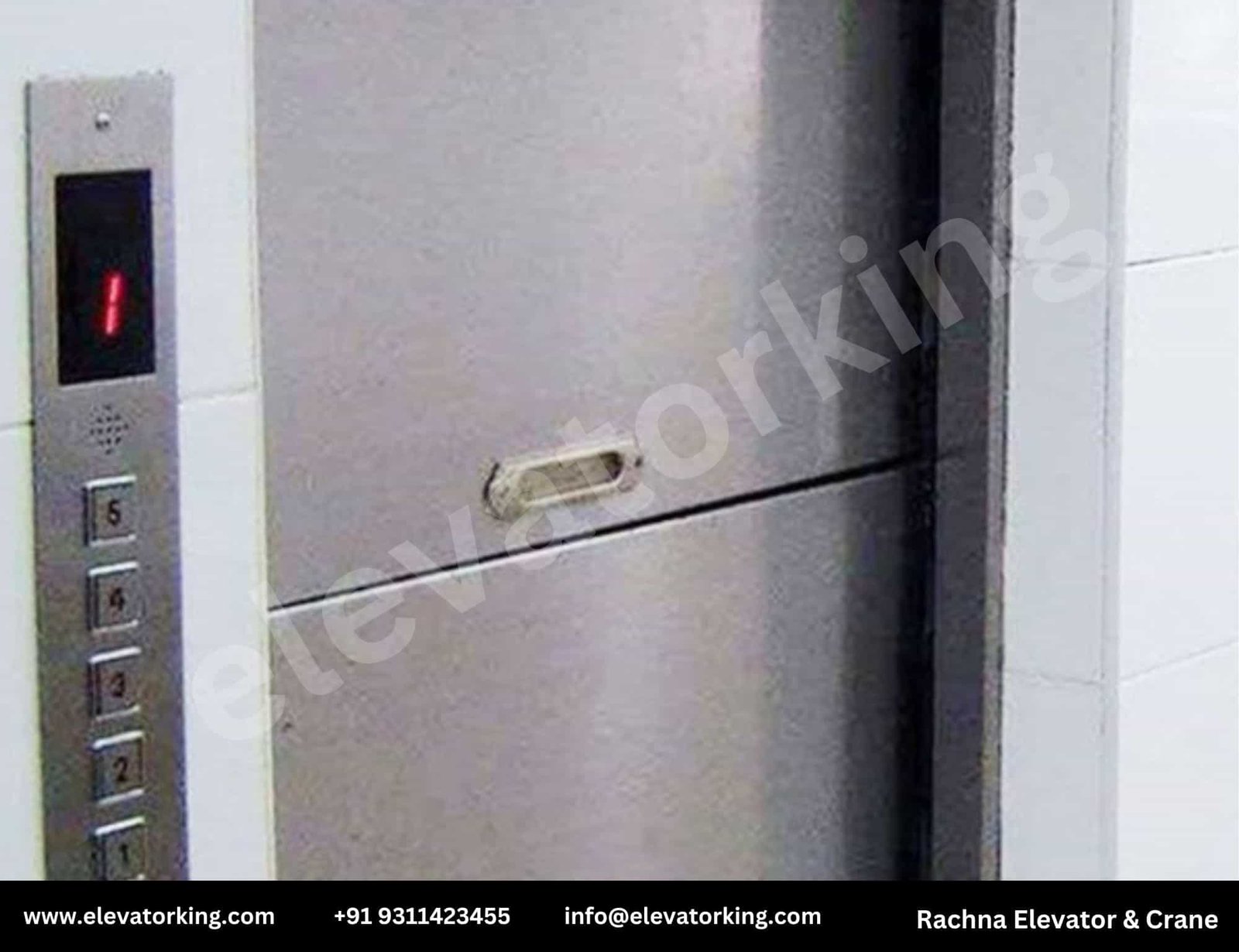

Digital Car Position Indicator shows cabin position on all the floors.
UP/DN Indicator shown the direction in which cabin is moving.
Voltage Protection: Upper and lower limit can be defined in each phase (220V) instead of consolidated 3 phase (440 V). This means maximum safety.
Over & Under Load protection can be defined by ampere setting in individual phase.
Phase Preventer saves electrical parts when the single or two phase is out of supply.
Phase Sequence Corrector / Auto Phase Changer automatically corrects the phase polarity when phase in the supply get changes.
MFFS (Magnet Floor And Final Sensing with the help of REED sensor) latest upgrade of limit switch (old & traditional technology). Though Reed sensor works on sensing technology instead of physical contact, their life is very high. Also, accuracy of the same is unmatched.
Special M.C.B. developed for Rachna Elevator & Cranes to provide final safety in case of malfunctioning in the panel.
Buffer is provided in the pit to cure the cabin from damage.
Doors: Collapsible.
Maximum opening after the bunch.
Emergency Stop button is provided on all floor to stop the cabin in case of emergency.
Electrical Mechanical Door Lock: -
◉ Door will not open during the lift movement.
◉ Door will open only on the floor where the cabin land.
◉ Until all the gates were closed lift will not move.
Following feature comes with Counter weight and Hydraulic Type:
◉ LIGHT
◉ FAN
◉ MUSIC ON TRAVEL
◉ VOICE ANNOUNCEMENT
Door will open only on the floor where the cabin land.
Until all the gates were closed lift will not move.
Over Speed Governor stop the lift in case of free fall of the cabin by applying mechanical brake / safety dogs. This comes with counterweight.
most economical
Easy to maintain
higher capacity
less installation time
Drum Type Elevators
Drum Type Elevator are very economical in the category. In this system rope winds on the drum when cabin moves upward respectively rope gets unwind from the drum when cabin moves in the downward direction. Advantage: –
Drum Elevators Are Also Available In
DRUM TYPE ELEVATOR WITH MACHINE ROOM
DRUM TYPE ELEVATOR WITHOUT MACHINE ROOM
Counter Weight Elevator
Counter weight Elevator is bit expensive. In this type Geared traction machine is used in which motor is coupled to a worm which transmit the motion to the pulley / sheave through worm gear. Sheave moves the wire rope in too & fro motion who’s one end tie with the cabin & other tie with the counter weight. Advantage: –
Moderate cost
Higher speed
Higher safety
Counterweight type elevators are also available in
DRUM TYPE ELEVATOR WITH MACHINE ROOM
DRUM TYPE ELEVATOR WITHOUT MACHINE ROOM
Hydraulic Elevator
Doesn’t require heavy structure (column, beam, pillar) because machine is not installed on the top. That means huge saving on construction cost.
No over Head & Machine room required means again huge cost saving in construction and in exterior also.
As there is no overhead and machine room, now roof top can be used which was earlier not possible because of no lift opening over there.
Though panel install on initial level instead of top floor or in the machine room wiring expense for 3-phase and earthing connection will save
Hydraulic Elevator is safest technology. It works in such a manner when oil push in the cylinder with the help of power pack piston moves up which rise the cabin. On another side by just releasing the wall oil from the cylinder come back in the power pack which lower down the cabin. Advantage: –
Security & Privacy: All the system is installed on initial level, so maintenance people won’t move up.
Half Running Cost: It consumes energy in up direction only.
Cost Saving: –
Hydraulic system is further classified in two categories:
HYDRAULIC ELEVATOR HOLE TYPE
1. Hole Type: In this system a hole is drilled in the pit where cylinder is to be install. Advantage: –
◉ Heavy load capacity
◉ No load on the walls
HYDRAULIC ELEVATOR HOLELESS TYPE
2. Hole Less Type: In this system cylinder installs on the parallel of the wall. Advantage: –
◉ More floors or height
◉ More speed
◉ Less maintenance
