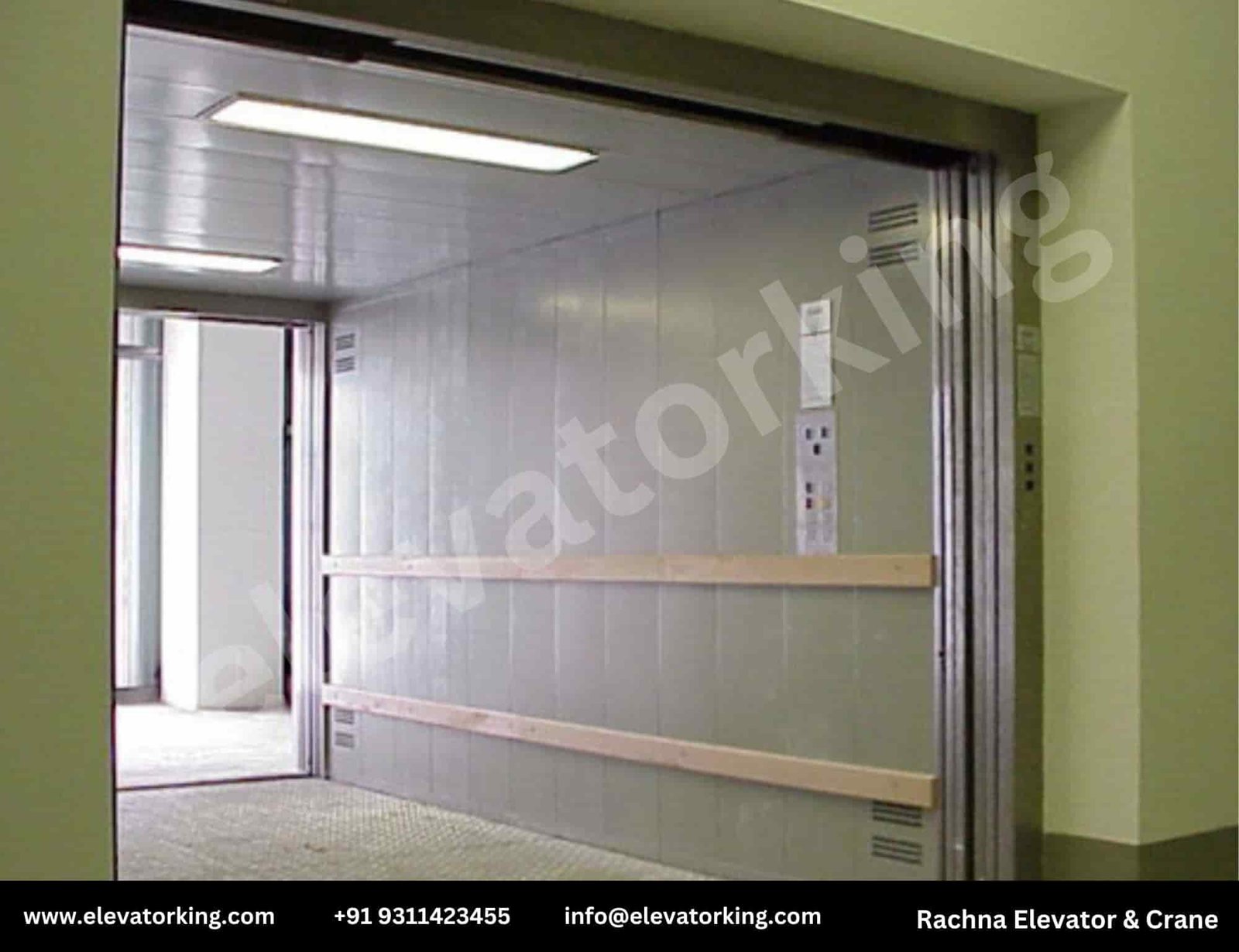

FREIGHT CUM PASSENGER ELEVATOR

A Goods Cum Passenger Lift, “is an essential component for any multi-storied building as it provides seamless transportation of both goods and passengers. Our service lift is designed to cater to the needs of both individuals and businesses, making it a versatile solution for various types of buildings. The lift provides a smooth and efficient transportation of goods and passengers to different floors with minimum downtime and maintenance. The service lift price is competitive and can be customized to meet the specific requirements of our clients. Our goods passenger lift is designed using state-of-the-art technology and premium quality materials, ensuring long-lasting durability and reliability. We also offer electric passenger and goods lift options, making it an eco-friendly and cost-effective solution.

The electric passenger and goods elevator uses less energy compared to traditional hydraulic elevators and provides a smooth, silent, and safe ride. Our goods and passenger elevator is also equipped with advanced safety features, ensuring maximum security for passengers and goods. The goods man elevator and goods man lift are ideal for industrial settings and are designed to handle heavy loads with ease. The industrial man elevator is an efficient solution for transportation of goods and personnel in industrial settings, providing seamless access to different levels of the building. Our service elevator cost is designed to be affordable, making it a cost-effective solution for businesses and individuals. The service elevator price is competitive and can be customized to meet the specific requirements of our clients.

In conclusion, if you are looking for a reliable and cost-effective lift solution for your building, our Goods Cum Passenger Lift is the ideal choice. Contact us today to learn more about our service lift and service elevator options and get a quote for your building.

Key Features

Digital Car Position Indicator shows cabin position on all the floors.

UP/DN Indicator shown the direction in which cabin is moving.

Voltage Protection: Upper and lower limit can be defined in each phase (220V) instead of consolidated 3 phase (440 V). This means maximum safety.

Over & Under Load protection can be defined by ampere setting in individual phase.

Phase Preventer saves electrical parts when the single or two phase is out of supply.

Phase Sequence Corrector / Auto Phase Changer automatically corrects the phase polarity when phase in the supply get changes.

MFFS (Magnet Floor And Final Sensing with the help of REED sensor) latest upgrade of limit switch (old & traditional technology). Though Reed sensor works on sensing technology instead of physical contact, their life is very high. Also, accuracy of the same is unmatched.

Special M.C.B. developed for Rachna Elevator & Cranes to provide final safety in case of malfunctioning in the panel.

Buffer is provided in the pit to cure the cabin from damage.

Doors: Collapsible.

Maximum opening after the bunch.

Emergency Stop button is provided on all floor to stop the cabin in case of emergency.

Electrical Mechanical Door Lock: -

◉ Door will not open during the lift movement.

◉ Door will open only on the floor where the cabin land.

◉ Until all the gates were closed lift will not move.

Over Speed Governor stop the lift in case of free fall of the cabin by applying mechanical brake / safety dogs. This comes with counterweight.

most economical

Easy to maintain

higher capacity

less installation time

Drum Type Elevators

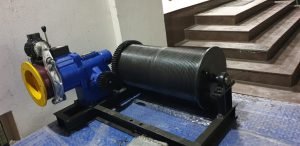

Drum Type Elevator are very economical in the category. In this system rope winds on the drum when cabin moves upward respectively rope gets unwind from the drum when cabin moves in the downward direction. Advantage: –

Drum Elevators Are Also Available In

DRUM TYPE ELEVATOR WITH MACHINE ROOM

DRUM TYPE ELEVATOR WITHOUT MACHINE ROOM

Counter Weight Elevator

Counter weight Elevator is bit expensive. In this type Geared traction machine is used in which motor is coupled to a worm which transmit the motion to the pulley / sheave through worm gear. Sheave moves the wire rope in too & fro motion who’s one end tie with the cabin & other tie with the counter weight. Advantage: –

Moderate cost

Higher speed

Higher safety

Counterweight type elevators are also available in

DRUM TYPE ELEVATOR WITH MACHINE ROOM

DRUM TYPE ELEVATOR WITHOUT MACHINE ROOM

Hydraulic Elevator

icon

Doesn’t require heavy structure (column, beam, pillar) because machine is not installed on the top. That means huge saving on construction cost.

icon

No over Head & Machine room required means again huge cost saving in construction and in exterior also.

icon

As there is no overhead and machine room, now roof top can be used which was earlier not possible because of no lift opening over there.

icon

Though panel install on initial level instead of top floor or in the machine room wiring expense for 3-phase and earthing connection will save

Hydraulic Elevator is safest technology. It works in such a manner when oil push in the cylinder with the help of power pack piston moves up which rise the cabin. On another side by just releasing the wall oil from the cylinder come back in the power pack which lower down the cabin. Advantage: –

Security & Privacy: All the system is installed on initial level, so maintenance people won’t move up.

Half Running Cost: It consumes energy in up direction only.

Cost Saving: –

Hydraulic system is further classified in two categories:

HYDRAULIC ELEVATOR HOLE TYPE

1. Hole Type: In this system a hole is drilled in the pit where cylinder is to be install. Advantage: –

◉ Heavy load capacity

◉ No load on the walls

HYDRAULIC ELEVATOR HOLELESS TYPE

2. Hole Less Type: In this system cylinder installs on the parallel of the wall. Advantage: –

◉ More floors or height

◉ More speed

◉ Less maintenance

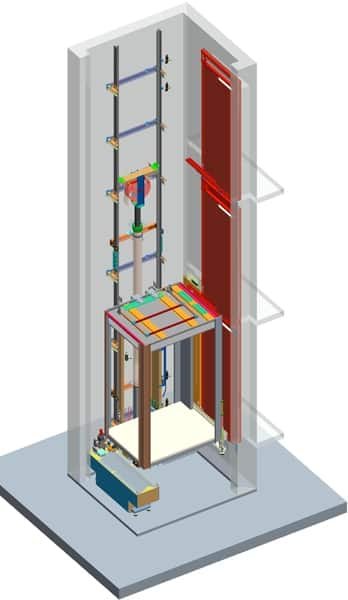

STRUCTURE ELEVATOR

If there is no shaft to put the elevator, either inside the building or outside the building, a structure can be fabricated to put the elevator. Structure can be covered by any material (GP sheet/ Glass/fiber etc.)
